Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
745mm
Distance between Tie Bars(Height)(mm):
705mm
Mold Height(mm):
240 - 750 mm
Ejector Number:
12+1
Ejector Stroke(mm):
170 mm
Ejector Force(kN):
90 kN
Theoretical Shot Volume(cm³):
1661 cm³
Injection Rate (g/s):
319.12 g/s
Machine Type:
Hydraulic
Injection Weight (g):
1512 g
Screw diameter (mm):
75 mm
Screw L/D Ratio:
22
Distance between Tie Bars:
745x705 mm
Weight (KG):
16000 kg

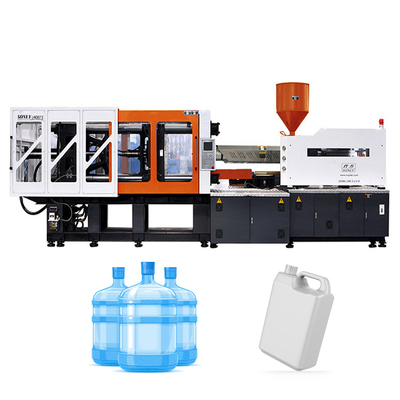

Type:
Injection molding machine
Place of Origin:
Zhejiang, China
Open Stroke(mm):
710 mm
Model Number:
U400TS
ブランド名:
SONLY
Power (kW):
37 kW
Warranty:
1 Year
Key Selling Points:
High Productivity
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Construction works , Food & Beverage Shops, Other
Showroom Location:
Egypt, Turkey, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Morocco, Chile, Algeria, Bangladesh, South Africa, Nigeria, Uzbekistan, Malaysia
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox
BOUNDARY DIMENSION(L*W*H):
7.44*1.9*2.53 m
After-sales Service Provided1:
Field installation, commissioning and training
After-sales Service Provided2:
Field maintenance and repair service
After Warranty Service1:
Video technical support
After Warranty Service2:
Online support
After Warranty Service3:
Spare parts
After Warranty Service4:
Field maintenance and repair service
Local Service Location1:
Egypt\Turkey\Peru\Indonesia\Mexico\Russia
Local Service Location2:
Argentina\South Korea\Colombia\Algeria\Bangladesh\South Africa
