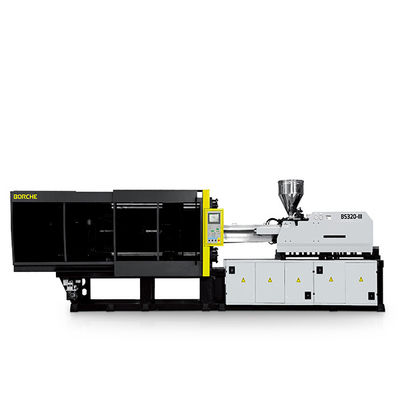

Borche Horizontal Plastic Brick Making Machine 150ton Shredder Plastic Injection Moulding, Pen Making Machine

1 Set
MOQ
Borche Horizontal Plastic Brick Making Machine 150ton Shredder Plastic Injection Moulding, Pen Making Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Plastic Processed: PP, PC, PET, PVC, PPR, HDPE, PE, HDPE/PP, PE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 460 mm
Distance between Tie Bars(Height)(mm): 460 mm
Mold Height(mm): 160 - 500 mm
Ejector Stroke(mm): 130 mm
Ejector Force(kN): 41.6 kN
Theoretical Shot Volume(cm³): 270 cm³
Injection Rate (g/s): 140 g/s
Machine Type: Hydraulic
Injection Weight (g): 397 g
Screw diameter (mm): 45 mm
Screw L/D Ratio: 20.5
Distance between Tie Bars: 460*460
Weight (KG): 4300
Place of Origin: Jiangsu, China
Open Stroke(mm): 410 mm
Model Number: BS150-III
ブランド名: Borche
Power (kW): 9.6 kW
Warranty: 1 Year, 1 year
Key Selling Points: High Productivity
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining
Showroom Location: Egypt
Plastic Type: Thermoplastic
Automatic: Yes
After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Overseas third-party support avai
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: Egypt
Clamping Force (kN): 1500 kN
証明: CE ISO9001
Machine weight: 4300KG
Injection pressure: 235MPa
Color: Customized
Language: English
Oil Tank Capacity: 230L
基本情報
Place of Origin: Jiangsu, China
ブランド名: Borche
証明: CE ISO9001
Model Number: BS150-III
お支払配送条件
Packaging Details: Package: 1.Machine cleaning 2.Protective film wrapping 3.Wooden box sealing
Supply Ability: 50 Set/Sets per Month
製品の説明
Product Description
DESCRIPTION OF BS150-III    634/150
International Class NO. UNIT
634/150
INJECTION UNIT
Screw Diameter
mm
40
Shot Volume
cm³
270
Shot Weight(PS)
g
254
Shot Weight(PS)
OZ
9
Injection Pressure
MPa
235
Screw L/D Ratio
L/d
23
Injection Stroke
mm
215
Screw Rotary Speed max
rpm
240
Nozzle Contact Force
KN
30
Nozzle Stroke
mm
250
CLAMPING UNIT
Clamping Force
KN
1500
Opening Stroke
mm
410
Platen Size
mm*mm
670*670
Space btw. Tie Bars
mm*mm
460*460
Daylight max
mm
910
Mold Thickness(min-max)
mm
160-500
Ejection Stroke
mm
130
Ejector Force
KN
41.6
Ejector Pin
unit
4+1
POWER UNIT
System Pressure
Mpa
17.5
Pump Motor
KW
15
Heating Capacity
KW
9.6
No. of Heater Zones
unit
5
GENERAL UNIT
Oil Tank Capacity
L
230
Machine Dimensions
m*m*m
4.85*1.42*1.94
Machine Weight
KG
4300

BS-III Main Features

Injection Unit

Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail

Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication

Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √

Electric and Control Part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage

Detailed Images

MOVING PLATEN CLAMPING

.1-Tie bars move across clamping cylinder, no touch with
seals, lessen pressing leakage; Module type clamping
cylinder, can be assembled and disassembled together,
easy for maintenance.
2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast
and precise locking.
3-Clamping cylinder assembled in the moving platen can
balance the load of mold, avoiding mold forward, improve
stability of moud open and clamping movement.

SUPER LONG LASTING TIE BAR

During high pressure locking, four tie bars under equal
force, no unbalance loading occured, avoiding tie bar
broken theoretically.

INNOVATED INJECTION STRUCTURE

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection
supporting made by one piece casting, is rigid and
compact.
2-Double carriage cylinder insures injection unit better
centering, and movement stable.







Mold platen Drawing


Packing & Delivery
Packaging
Size
710×240×210
Weight
1.9 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
710×240×210
Weight
1.9 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
