Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.
Pellet Making Machine Granulator Pelletizer is designed for the industrial production which includes MZLH-420 with output 800-1000kg/1hour; MZLH-600 with output 1500-2500kg/1hour; and MZLH-800 with output 3500-4500kg/1hour.
Pellet Making Machine Granulator Pelletizer is designed for the family/farm need with lower output which includes MZLP-200 with output 50-100kg/1hour; MZLP-300 with output 150-250kg/1hour; and MZLP-400 with output 250-350kg/1hour.
Name | Model | Power (kw) | Capacity (Ton/Hour) | Pellet Diameter. (mm) | Ring Die’s Diameter (mm) | Roller (Piece) |
Pellet Machine | MZLH420A | 90 | 1-1.2 | 6-8 | 420 | 2 |
MZLH420B | 110 | 1.2-1.5 | 6-8 | 420 | 2 | |
MZLH420C | 132 | 1.51-1.8 | 6-8 | 420 | 2 | |
| ||||||
Pellet Machine | MZLH600A | 160 | 2-2.5 | 6-8 | 600 | 2 |
MZLH600B | 190 | 2.5-3 | 6-8 | 600 | 3 | |
MZLH600C | 240 | 3-3.5 | 6-8 | 600 | 3 | |
| ||||||
Pellet Machine | MZLH800A | 320 | 4-5 | 6-8 | 800 | 4 |
MZLH800B | 440 | 6-7 | 6-8 | 800 | 4 | |

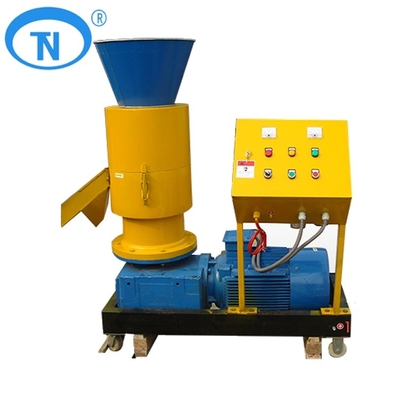

Other | CE Factory price small wood pellets making machine homemade flat die pellet mill | |||||
Model | Technical Parameter | Power (Kw/Hp) | Packing Dimension(mm) | Net/Gross Weight |
MZLP-200 Pellet Machine | Carbon steel, movable style, the capacity is 55-100kg/1h to make biomass pellet with diameter 6mm |
5.5/15 | 1000*800*1000 | 250/300Kg |
MZLP-300 Pellet Machine | Carbon steel, movable style, the capacity is 150-250kg/1h to make biomass pellet with diameter 6mm | 15/30 | 1200*1000*1200 | 480/530Kg |
MZLP-400 Pellet Machine | Carbon steel, movable style, the capacity is 250-350kg/1h to make biomass pellet with diameter 6mm | 22/40 | 1200*1100*1250 | 850/900Kg |
Other | CE Factory price small wood pellets making machine homemade flat die pellet mill | |||
